HL20441-T

45° metric external thread 24° conical strip 0 type light series

Introduction： High reliability: The hydraulic system can operate stably under high pressure and high load conditions. The design and manufacturing process of the parts ensure their robustness and durability, capable of withstanding considerable pressure and impact, and reducing the possibility of failure. It has fatigue resistance and large displacement compensation capacity, and is widely used in pipeline systems for media such as oil and water
Telephone： 400-100-6819
Email： info@huvlone.com

Product Inquiry

Service Hotline 400-100-6819

Service Hotline： 400-100-6819

商品名称: HL20441-T

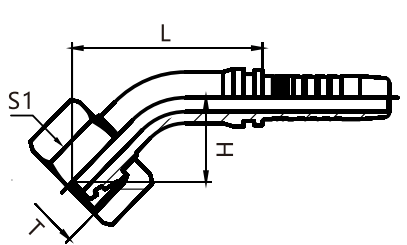

代号 PA RT NO.	螺纹 T	软管		管子外径	尺寸
代号 PA RT NO.	THREAD T	公称内径 DN	标号 DASH		L	H	S1
HL20441-12-04W	M12×1.5	6	04	6	47	25	14
HL20441-14-04T	M14×1.5	6	04	8	39	17	17
HL20441-14-05W	M14×1.5	8	05	8	42.5	19	17
HL20441-14-06W	M14×1.5	10	06	8	45	19	17
HL20441-16-04T	M16×1.5	6	04	10	39	19	19
HL20441-16-05T	M16×1.5	8	05	10	45	21.5	19
HL20441-16-06W	M16×1.5	10	06	10	54.6	28.6	19
HL20441-18-05T	M18×1.5	8	05	12	46	22	22
HL20441-18-06T	M18×1.5	10	06	12	48	22.2	22
HL20441-18-08W	M18×1.5	13	08	12	54	21.5	22
HL20441-22-08T	M22×1.5	13	08	15	57	25	27
HL20441-22-10W	M22×1.5	16	10	15	73	33.7	27
HL20441-26-10T	M26×1.5	16	10	18	68.5	29	32
HL20441-26-12W	M26×1.5	19	12	18	81	38.5	32
HL20441-30-10T	M30×2	16	10	22	68	28.5	36
HL20441-30-12T	M30×2	19	12	22	74	31.5	36
HL20441-30-16W	M30×2	25	16	22	89.5	36.5	36
HL20441-36-12T	M36×2	19	12	28	76.5	33.7	41
HL20441-36-14T	M36×2	22	14	28	79.5	34	41
HL20441-36-16T	M36×2	25	16	28	88	35	41
HL20441-36-20W	M36×2	32	20	28	102	41.5	41
HL20441-45-16T	M45×2	25	16	35	88	35	50
HL20441-45-20T	M45×2	32	20	35	99.8	39.1	50
HL20441-45-24W	M45×2	38	24	35	113.5	44.5	50
HL20441-52-20T	M52×2	32	20	42	100	39.1	60
HL20441-52-24T	M52×2	38	24	42	115	45.3	60
HL20441-52-32W	M52×2	51	32	42	132.5	51.5	60
