代号 PA RT NO. |
法兰型号 | 软管 | 尺寸 | ||||
|---|---|---|---|---|---|---|---|

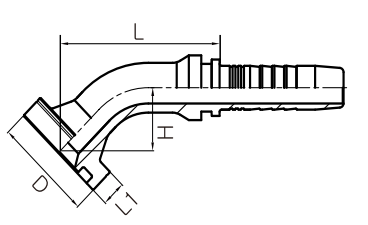

| FLANGE SIZE | 公称内径 DN | 标号 DASH | L | H | D | L1 | |
| HL87641-08-08 | 1/2" | 13 | 08 | 50.3 | 19 | 31.7 | 7.75 |
| HL87641-12-10 | 3/4 | 16 | 10 | 65.2 | 26 | 41.3 | 8.76 |
| HL87641-12-12 | 3/4" | 19 | 12 | 68.7 | 26 | 41.3 | 8.76 |
| HL87641-16-12 | 1" | 19 | 12 | 74.7 | 32 | 47.6 | 9.53 |
| HL87641-16-16 | 1" | 25 | 16 | 81.4 | 32 | 47.6 | 9.53 |
| HL87641-16-20 | 1" | 32 | 20 | 95.8 | 35 | 47.6 | 9.53 |
| HL87641-20-16 | 1.1/4" | 25 | 16 | 87.4 | 38 | 54 | 10.29 |
| HL87641-20-20 | 1.1/4" | 32 | 20 | 98.8 | 38 | 54 | 10.29 |
| HL87641-24-20 | 1.1/2" | 32 | 20 | 104.8 | 44 | 63.5 | 12.57 |
| HL87641-24-24 | 1.1/2" | 38 | 24 | 115.1 | 44 | 63.5 | 12.57 |
| HL87641-32-24 | 2" | 38 | 24 | 127.1 | 56 | 79.4 | 12.57 |
| HL87641-32-32 | 2" | 51 | 32 | 141 | 56 | 79.4 | 12.57 |
| 注:1、表中代号用于编织软管。 2、如需用于缠绕软管代号改为HL87642-XX-XX。 | |||||||
